1) Description of Measurement

The clivo-axial angle (CXA) is a sagittal craniocervical measurement that quantifies the angular relationship between the clivus (posterior skull base) and the axis (C2). It reflects the degree of ventral kinking or kyphotic angulation of the cervicomedullary junction.

A decreased CXA indicates abnormal craniovertebral alignment and is associated with ventral brainstem compression, traction injury, and cervicomedullary deformity in conditions such as basilar invagination, craniocervical instability, trauma, rheumatoid disease, and connective tissue disorders.

2) Instructions to Measure

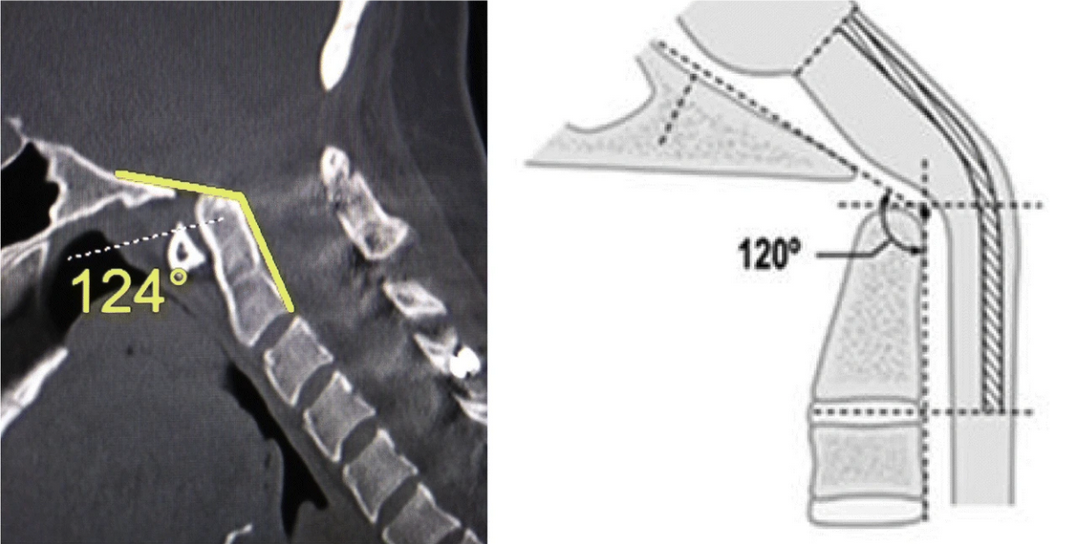

• Select a true mid-sagittal CT reconstruction that clearly shows the skull base, clivus, and C2 vertebral body.

• Draw the Clival Line:

• Trace a line along the posterior cortical margin of the clivus.



• Draw the Posterior Axial Line:

• Trace a line along the posterior cortex of the C2 vertebral body.



•  Extend both lines until they intersect.

• Measure the angle formed at the intersection of these two lines.

• This angle is the Clivo-Axial Angle (CXA), recorded in degrees.

3) Normal vs. Pathologic Ranges

• Normal: 135° - 165°

• Borderline: 125° - 134°

• Pathologic (ventral cervicomedullary compression): < 125°

Key points:

• A CXA < 125° is strongly associated with ventral brainstem deformity and neurologic symptoms.

• Progressive reduction in CXA correlates with worsening bulbar dysfunction, myelopathy, and headache syndromes.

4) Important References

Henderson FC Sr, Henderson FC Jr, Wilson WA 4th, Mark AS, Koby M. Utility of the clivo-axial angle in assessing brainstem deformity: pilot study and literature review. Neurosurg Rev. 2018 Jan;41(1):149-163. doi: 10.1007/s10143-017-0830-3.

Henderson FC Sr, Francomano CA, Koby M, Tuchman K, Adcock J, Patel S. Cervical medullary syndrome secondary to craniocervical instability and ventral brainstem compression in hereditary hypermobility connective tissue disorders: 5-year follow-up after craniocervical reduction, fusion, and stabilization. Neurosurg Rev. 2019 Dec;42(4):915-936. doi: 10.1007/s10143-018-01070-4.

Smoker WR. Craniovertebral junction: normal anatomy, craniometry, and congenital anomalies. Radiographics. 1994 Mar;14(2):255-77. doi: 10.1148/radiographics.14.2.8190952.

Menezes AH. Craniovertebral junction anomalies: diagnosis and management. Semin Pediatr Neurol. 1997 Sep;4(3):209-23. doi: 10.1016/s1071-9091(97)80038-1.

Goel A, Dhar A, Shah A, Rai S, Bakale N, Vaja T. Revision for Failed Craniovertebral Junction Stabilization: A Report of 30 Treated Cases. World Neurosurg. 2019 Jul;127:e856-e863. doi: 10.1016/j.wneu.2019.03.286.

5) Other info....

CXA should be interpreted in conjunction with:

• Basion-Axial Interval (BAI)

• Basion-Dens Interval (BDI)

• Power’s ratio

• Occipital–C1 alignment

Abnormal CXA is seen in:

• Basilar invagination

• Atlantoaxial or occipitocervical instability

• Rheumatoid pannus

• Post-traumatic deformity

• Heritable connective tissue disorders (e.g., EDS)

When CXA is < 125°, MRI is recommended to assess:

• Ventral brainstem deformation

• Cord signal change

Surgical realignment that restores CXA toward normal values is associated with improved neurologic outcomes in selected patients.
